Step Light Round Recessed 90 Copper

GANL-SLRR90-4W-2700-40D-COP
The modern and curved design of the Step Linear Round Recessed 90 combined with quality inbuilt LED technology has been designed to project a quality and even light across the surface. Time saving inclusions are standard for easy installation. Features include:

- Made from quality corrosion resistant brass
- IP66 weatherproof rating and resistant to dust providing a high level of protection against the elements
- IP67 disconnect/reconnect feature where suited
- Supplied fitted with unique toggle fixing system for an easy to install solution
- Supplied with matching screws and plugs.

Download the Step Linear Round Recessed 90 Data Sheet, Installation and Product information from the Resources section below.

Recommended Applications and Accessories

Suited for use on staircases and feature wall mounted settings. Wall, step or surface mounted. Installation canister available for off form concrete and masonry wall applications:

- Concrete application. Custom designed canister (sold separately) can be placed in slab prior to concrete pour to ensure easy installation
- Timber application. Cut-out for Step Linear Light Recessed 90 is 176mm x 109mm (minimum depth) to ensure sufficient space for connector and cable behind light fitting when installed. Hole size is a standard core drill bit or hole saw size. Refer to Installation Instructions.

Finishes Available

Our range offers a selection of finishes to complement every outdoor space and project. Finishes available:
BLK Matt Black powder coat
BZE Bronze
COP Copper
NKL Nickel

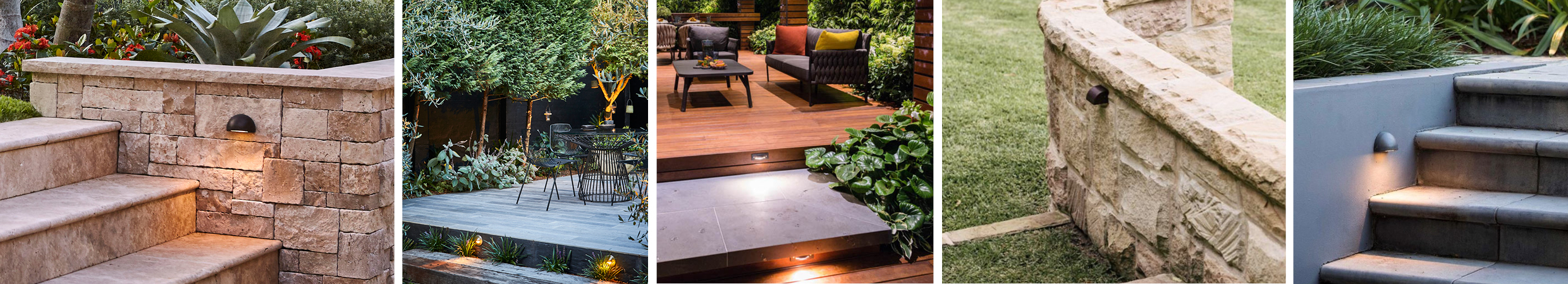

Step Lights Inspiration Gallery

Click on image below for inspiration on Step Lights.

Standard range

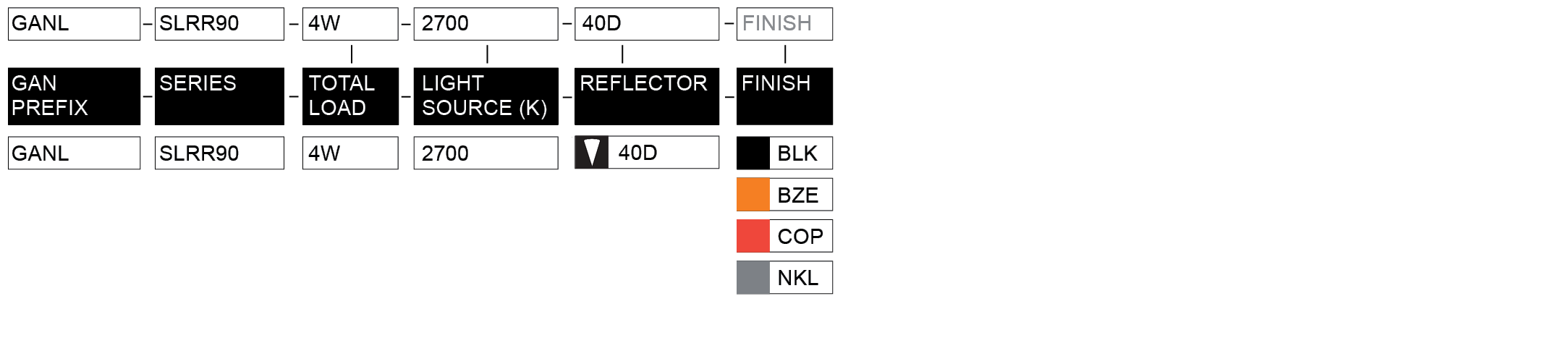

Designed to suit a variety of residential and landscaping applications the Standard range is readily available from your local Distributor. To identify your unique ordering code simply add your chosen finish to the end of the code matrix as shown below.

Custom configuration

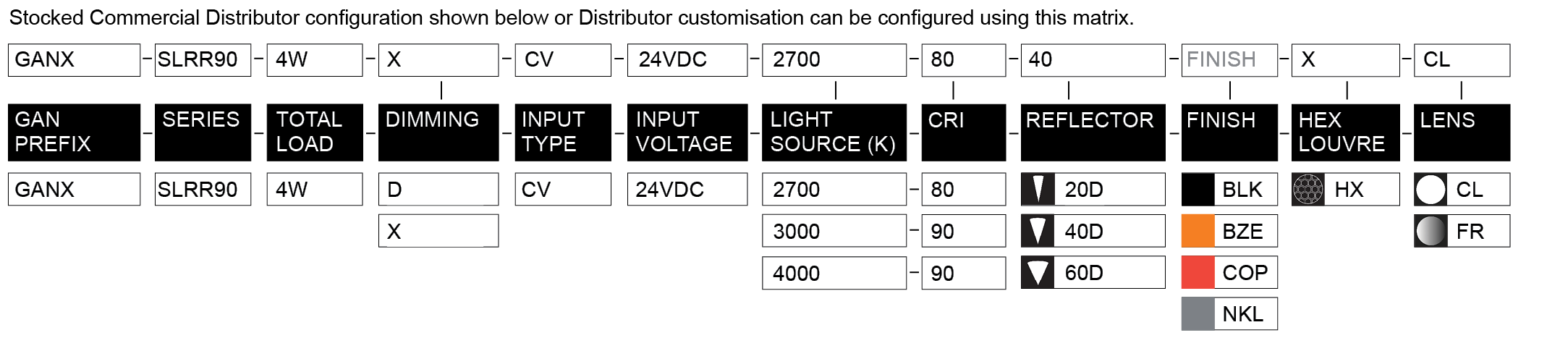

If required, we can provide a Custom solution to suit your large residential or commercial project. The following code matrix shows the options available. Production, costs and timing will vary depending on customisation. For assistance, speak to your local Commercial Distributor.

The following technical data and resources are available for this product. Click on button to view.

5 years. Applicable on purchases from 01/01/19.

Refer to Technical Resources page to download Warranty Statement.

Associated accessories sold separately. Refer to Accessories.

Canister 590
