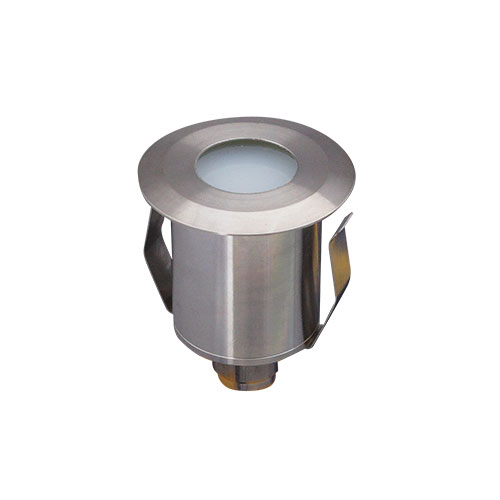

Inground 1 Stainless Steel
GANL-IG1-1W-2700-SS
The Inground 1 is a compact uplight suitable for defining edges and changes in levels within your outdoor space. The Inground 1 is designed to project a quality illumination. Features include:
- Made from 316 stainless steel construction or quality corrosion resistant brass
- IP67 weatherproof rating and resistant to dust providing a high level of protection against the elements
- Easy to install decking solution.
Download the Inground 1 Data Sheet, Installation and Product information from the Resources section below.
- Made from 316 stainless steel construction or quality corrosion resistant brass
- IP67 weatherproof rating and resistant to dust providing a high level of protection against the elements
- Easy to install decking solution.
Download the Inground 1 Data Sheet, Installation and Product information from the Resources section below.
Recommended Applications and Accessories
Perfect for defining edges, uplighting walls or grazing surfaces. Suitable for concrete and decking installation.
- Concrete application. Fitting is suited to 40mm PVC electrical conduit which can be placed in slab prior to concrete pour to ensure good drainage to soil. Cutout can also be core drilled with 38mm size core drill. 40mm PVC conduit is not required but hole must provide drainage to sub-soil.

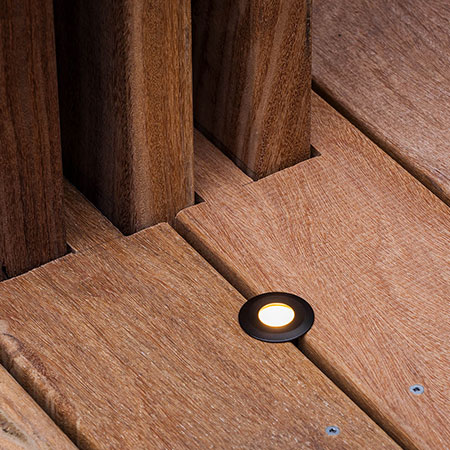

- Decking or timber application. 38mm cutout is required for installation into decking or timber. Canister is not required.
- Concrete application. Fitting is suited to 40mm PVC electrical conduit which can be placed in slab prior to concrete pour to ensure good drainage to soil. Cutout can also be core drilled with 38mm size core drill. 40mm PVC conduit is not required but hole must provide drainage to sub-soil.
- Decking or timber application. 38mm cutout is required for installation into decking or timber. Canister is not required.
Finishes Available
Our range offers a selection of finishes to complement every outdoor space and project. Finishes available:
| BLK | Matt Black powder coat | |
| BZE | Bronze | |
| SS | Stainless Steel |

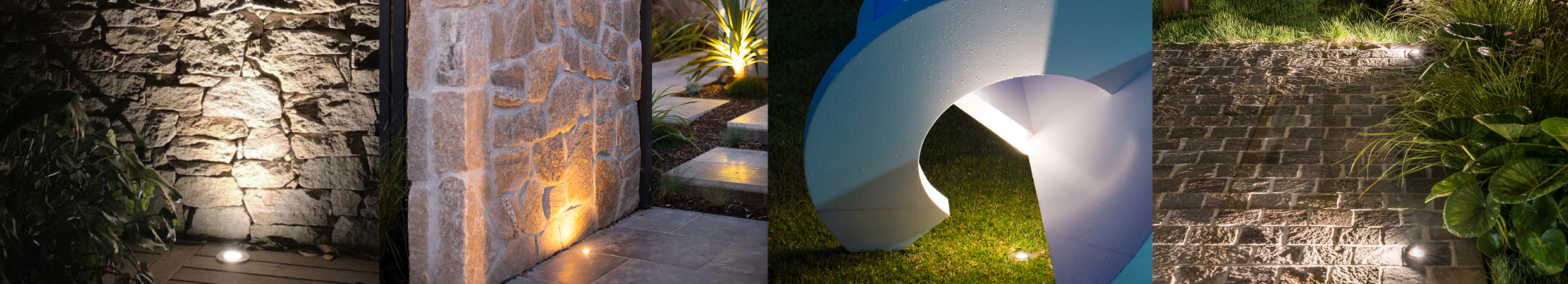

Inground Lights Inspiration Gallery
Click on image below for inspiration on Inground Lighting.
Standard range - locally stocked item

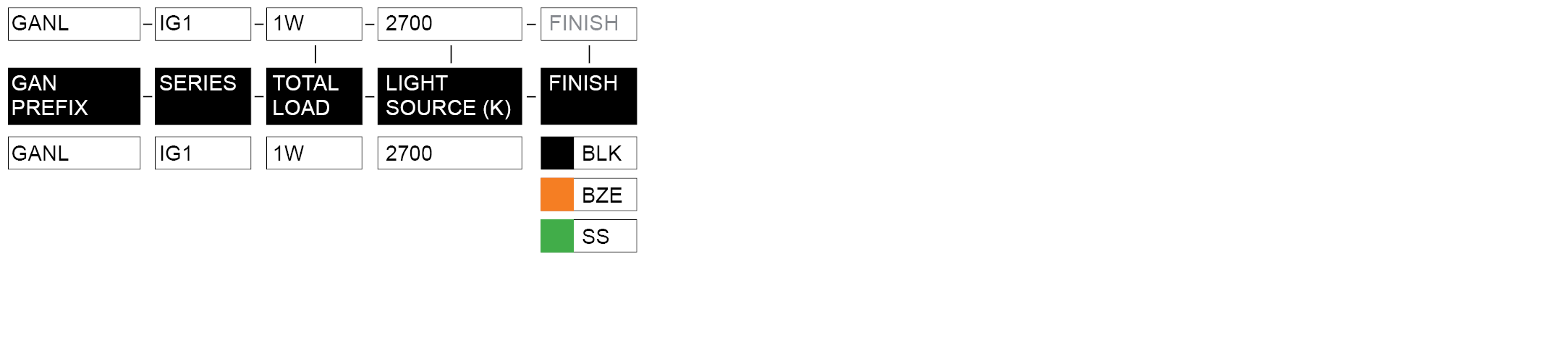

Designed to suit a variety of residential and landscaping applications the Standard range is readily available from your local Distributor. To identify your unique ordering code simply add your chosen finish to the end of the code matrix or copy the standard item code below to order:
GANL-IG1-1W-2700-SS
Custom configuration - commercial specification
If required, we can provide a Custom solution to suit your large residential or commercial project. The following code matrix shows the options available for customisation. For information, speak to your local Commercial Distributor. To assist with specification, simply refer to the GANX item code below:
GANX-IG1-1W-X-CV-24VDC-2700-80-SS-X-CL
The following technical data and resources are available for this product. Click on button to view.
5 years.
Refer to Technical Resources page to download Warranty Statement.

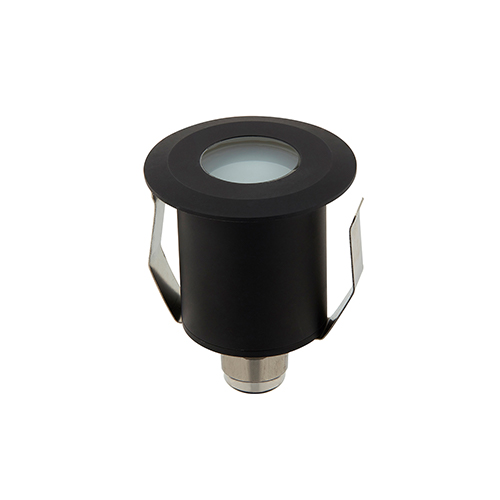

Inground 1 BLK

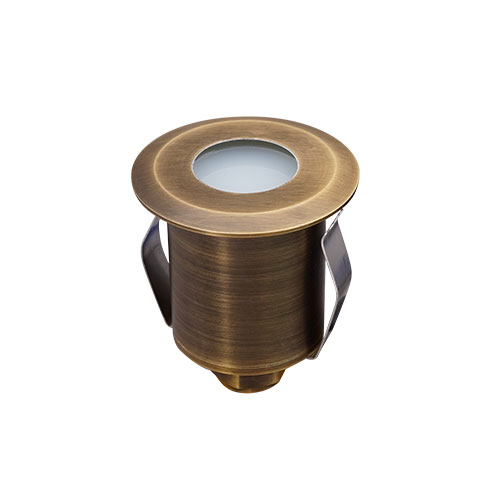

Inground 1 BZE
