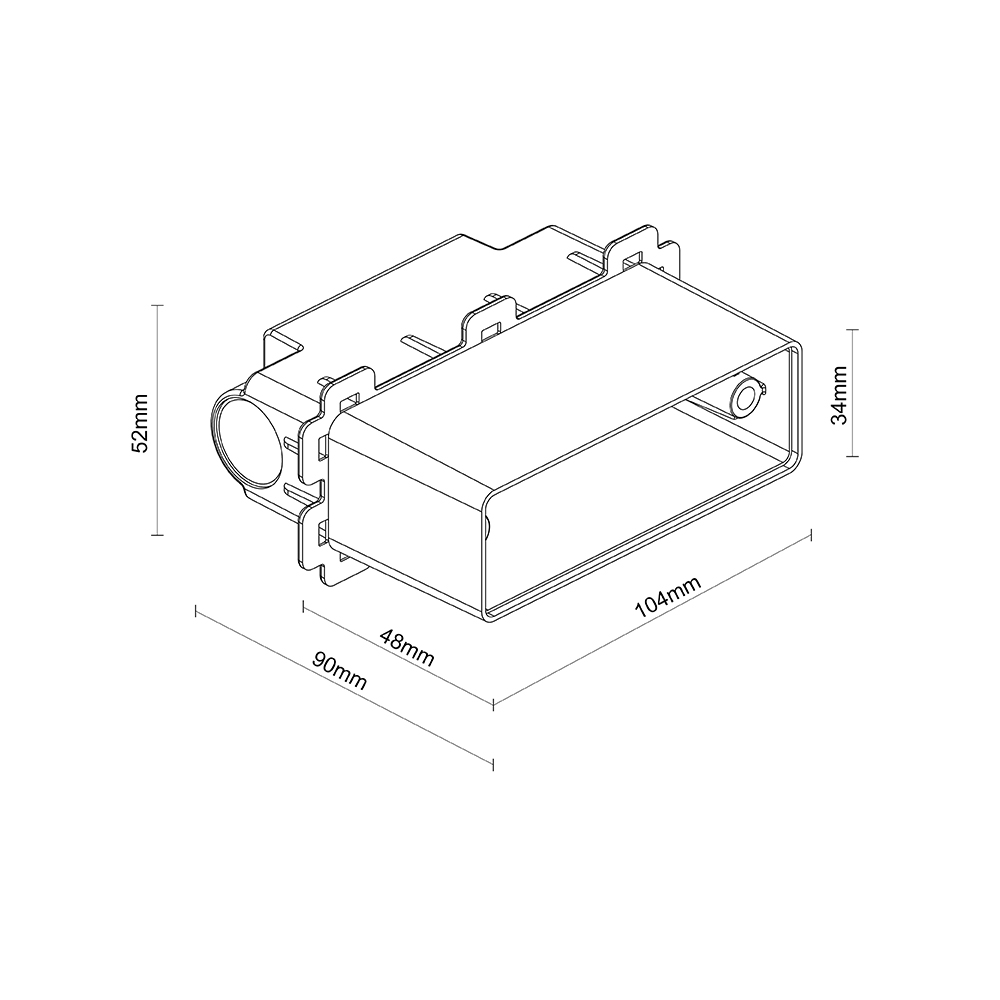

Canister 120 - 120mm

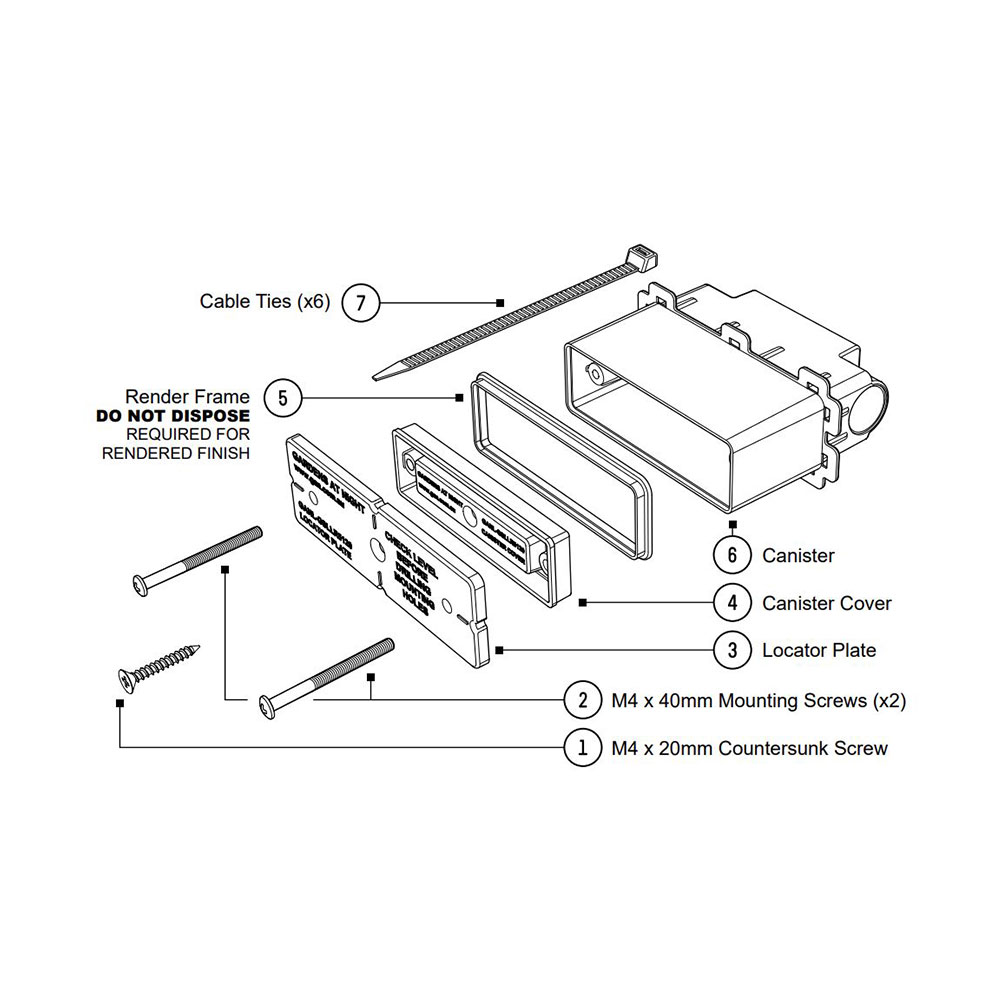

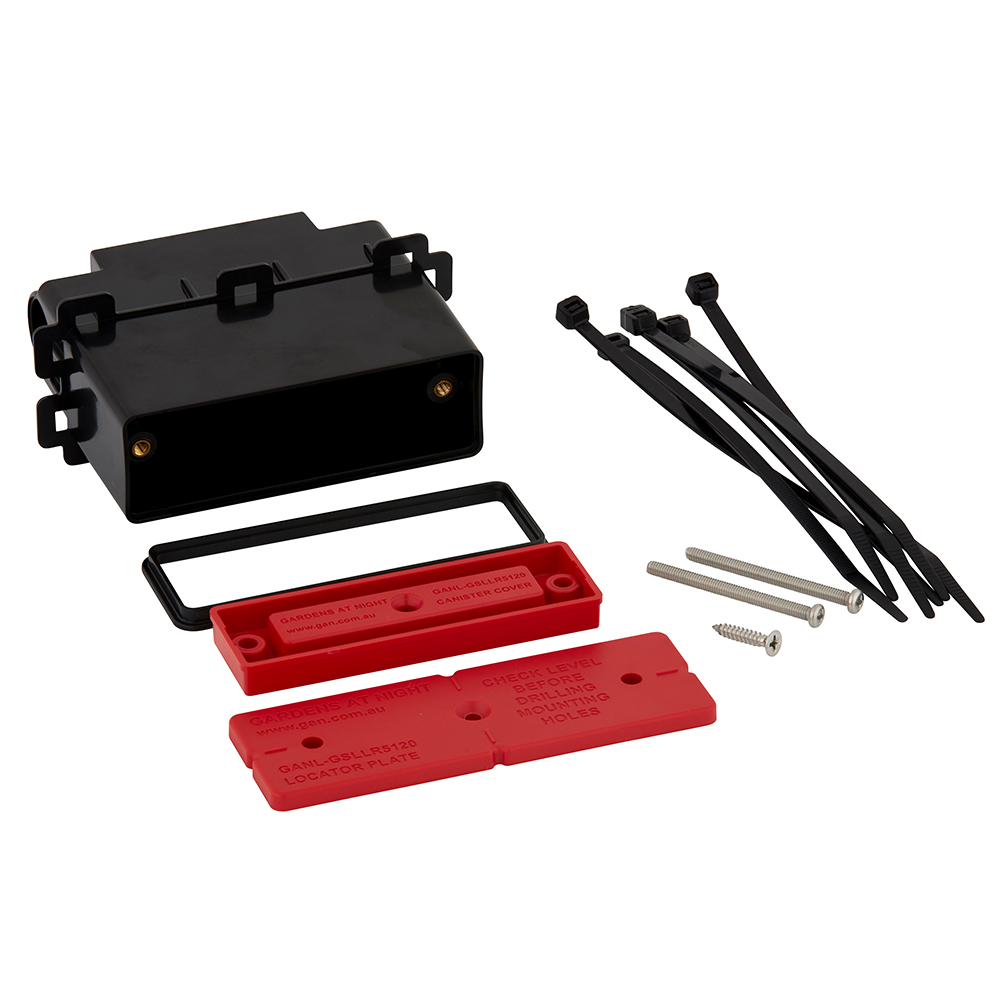

The Step Light Linear Recessed Canister is a custom designed installation accessory for the Step Light Linear Recessed 120. A professional solution & highly recommended to assist with the installation in both off form concrete and masonry wall projects during the construction & form work preparation. Features include:

- Manufactured from high grade, impact resistant polymers.
- Side and rear conduit entry points
- Multiple fixing points
- Render collar included
- Supplied with screws for fixing Canister in place and cable ties for fixing Canister to reinforcing bars when used in concrete

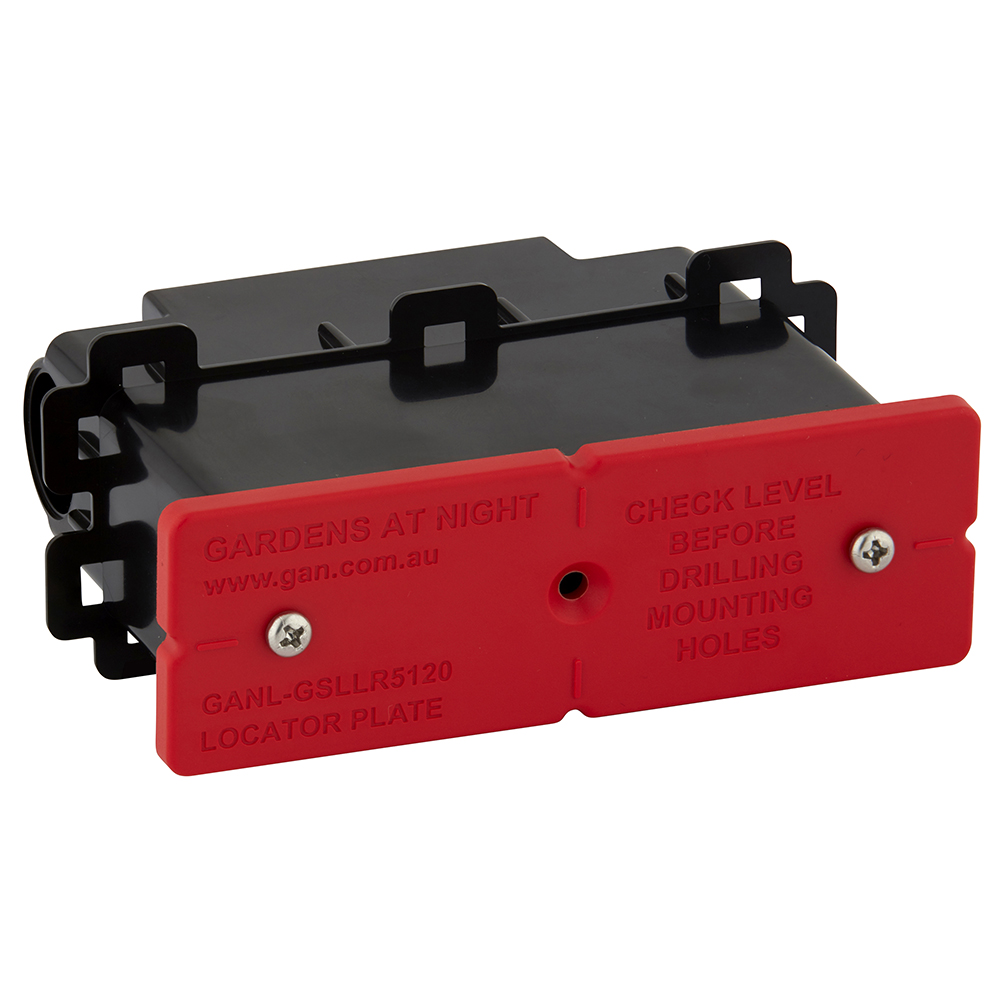

- Easy to use Mount Locator Plate for a level installation

Refer to the Step Light Linear Recessed Canister 120 Data Sheet, Installation and Product information from the Resources section below.

Recommended Applications and Accessories

Suited for use in off form concrete and masonry wall applications. Wall or surface mounted.

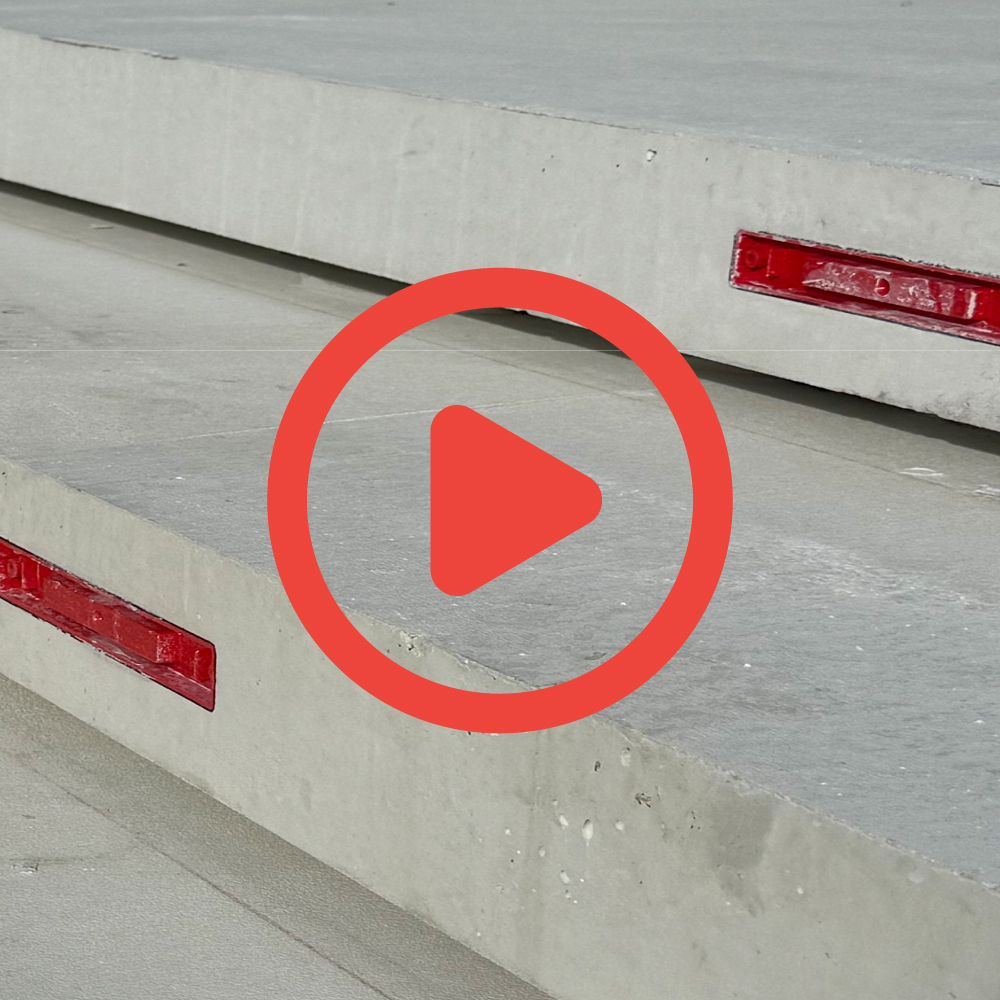

Concrete application
- Uniquely designed canister enabling mounting options during the formwork preparation and construction to ensure an overall professional installation
- Using the Mount Locator Plate, mark positioning of Canister fitting centre point
- Use Locator Plate with spirit level to ensure horizontal installation
- Select preferred conduit sockets from three locations to suit required wiring
- Fix Canister to reinforcing bars using cable ties through Canisters external mounting eyelets.

Rendered application
- Render collar included with multiple fixing points
- Apply rendered finish using front face of cover as a guide to achieve consistent render thickness around Canister opening.
