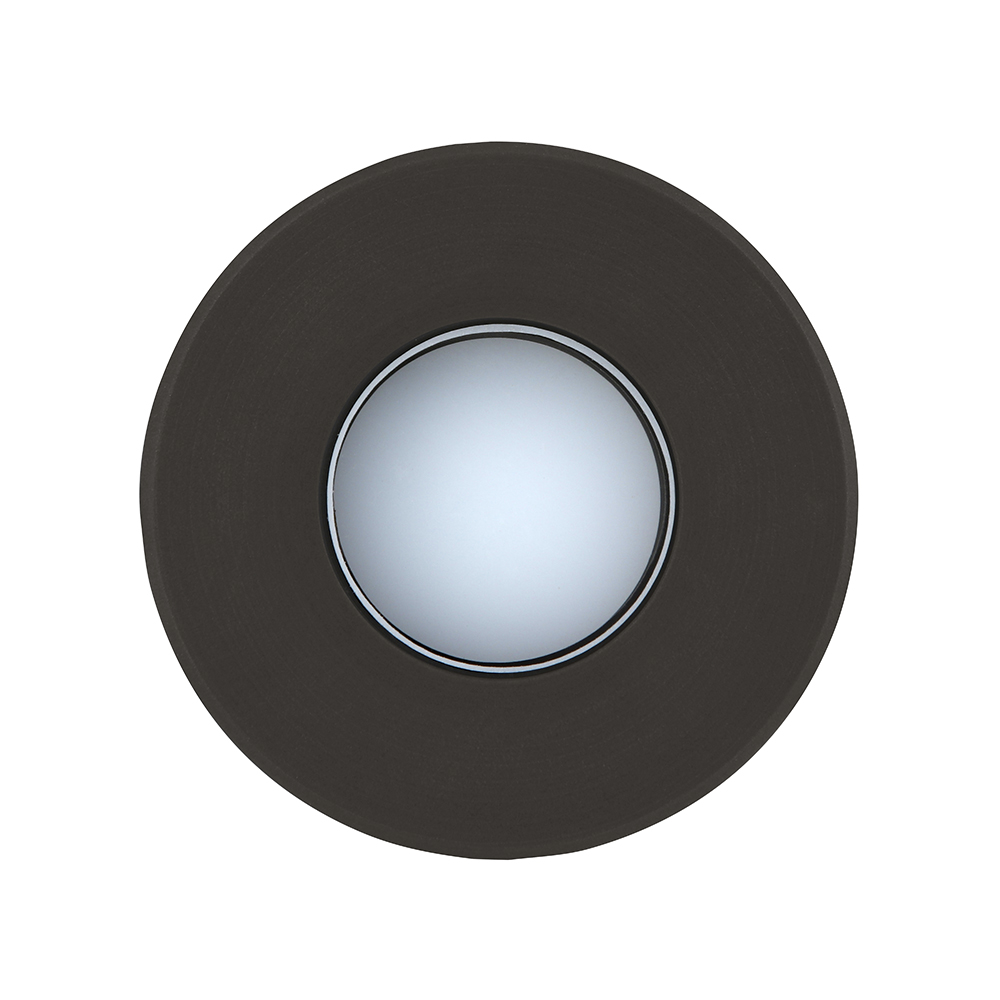

Inground 50 Bronze
GANL-IG50-1W-2700-OP-BZE-1m
The Inground 50 is a compact inground marker light suitable for defining edges and level transitions within your outdoor space. Its high-quality, soft illumination, subtly guides movement, creating clear visual boundaries in landscape environments.
Features include:
- Made from quality corrosion resistant brass
- Fitted with Cree® LED technology to deliver uniform colour, high CRI (colour rendering index) and high efficiency - backed by rigorous testing and certification
- Fitted with industry-leading light efficiency optics. LEDiL TINA-Y optics delivers precision beam control and performance
- IP67 weatherproof rating and resistant to dust providing a high level of protection against the elements
- Inbuilt thermal protection
- Dimmable via Triac or DALI protocols with approved power supplies providing a 24 VDC PWM output signal - use with additional PWM Power Filter for best dimming performance
- Supplied with an easy to install enamel coated 316 Stainless Steel Mounting Collar
- Available in 1m or 15m cable lengths, providing the flexibility to suit complex installations
Download the Inground 50 Data Sheet, Installation and Product information from the Resources section below.
Features include:
- Made from quality corrosion resistant brass
- Fitted with Cree® LED technology to deliver uniform colour, high CRI (colour rendering index) and high efficiency - backed by rigorous testing and certification
- Fitted with industry-leading light efficiency optics. LEDiL TINA-Y optics delivers precision beam control and performance
- IP67 weatherproof rating and resistant to dust providing a high level of protection against the elements
- Inbuilt thermal protection
- Dimmable via Triac or DALI protocols with approved power supplies providing a 24 VDC PWM output signal - use with additional PWM Power Filter for best dimming performance
- Supplied with an easy to install enamel coated 316 Stainless Steel Mounting Collar
- Available in 1m or 15m cable lengths, providing the flexibility to suit complex installations
Download the Inground 50 Data Sheet, Installation and Product information from the Resources section below.
Recommended Applications and Accessories

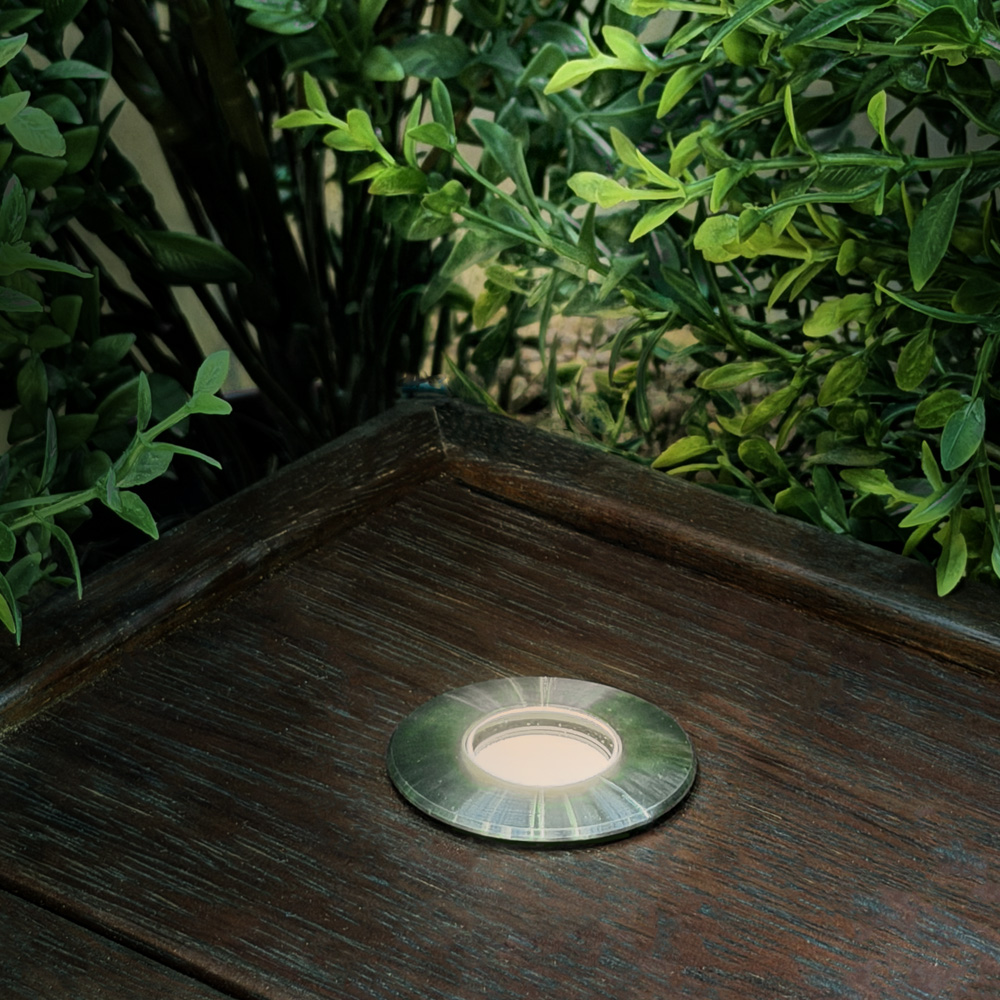

Perfect for defining perimeters of decking and paving. Suitable for concrete, timber or masonry application.
- 15m cable length is recommended as best practice for conduit installation, where required, to bring all connections for joining above ground, away from moisture build up, or pooling water.
- Conduit application. Fitting is compatible with many 40mm Grey PVC Electrical Conduits to offer an alternative installation solution. (Mounting Collar supplied, is not required in this instance).
- Concrete application. Supplied Mounting Collar suits a 38mm cored hole. (Drainage to sub-soil must be provided).
- Decking or timber application. 38mm cutout is required for installation into decking or timber using Mounting Collar supplied.
- 15m cable length is recommended as best practice for conduit installation, where required, to bring all connections for joining above ground, away from moisture build up, or pooling water.
- Conduit application. Fitting is compatible with many 40mm Grey PVC Electrical Conduits to offer an alternative installation solution. (Mounting Collar supplied, is not required in this instance).
- Concrete application. Supplied Mounting Collar suits a 38mm cored hole. (Drainage to sub-soil must be provided).
- Decking or timber application. 38mm cutout is required for installation into decking or timber using Mounting Collar supplied.
Finishes Available
Copper and bronze are living finishes that naturally age and weather over time - resulting in earthy tones and soft green patina. The extent and rate of change in appearance, depends on the environment. Exposure to air, moisture, and coastal conditions encourages this surface oxidation.
Matt Black finish is manufactured using a highly durable PVD (physical vapour deposition) process, resulting in a scratch resistant matt finish.
Stainless Steel (316L) delivers exceptional corrosion resistance and strength, engineered for marine and coastal applications.
Our range offers a selection of finishes to complement every outdoor space and project. Finishes available:
Matt Black finish is manufactured using a highly durable PVD (physical vapour deposition) process, resulting in a scratch resistant matt finish.
Stainless Steel (316L) delivers exceptional corrosion resistance and strength, engineered for marine and coastal applications.
Our range offers a selection of finishes to complement every outdoor space and project. Finishes available:
| 1m | ||
| 1m |

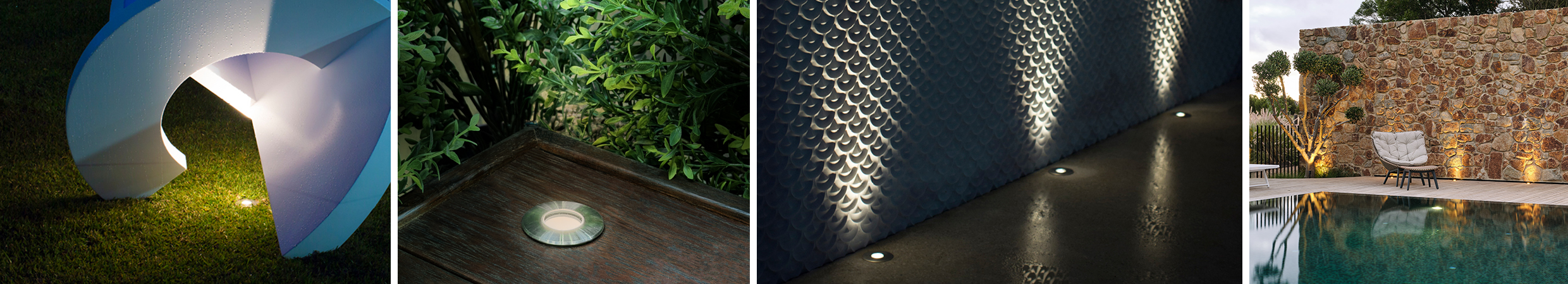

Inground Lights Inspiration Gallery
Click on image below for inspiration on Inground Lighting.
Standard range - locally stocked item

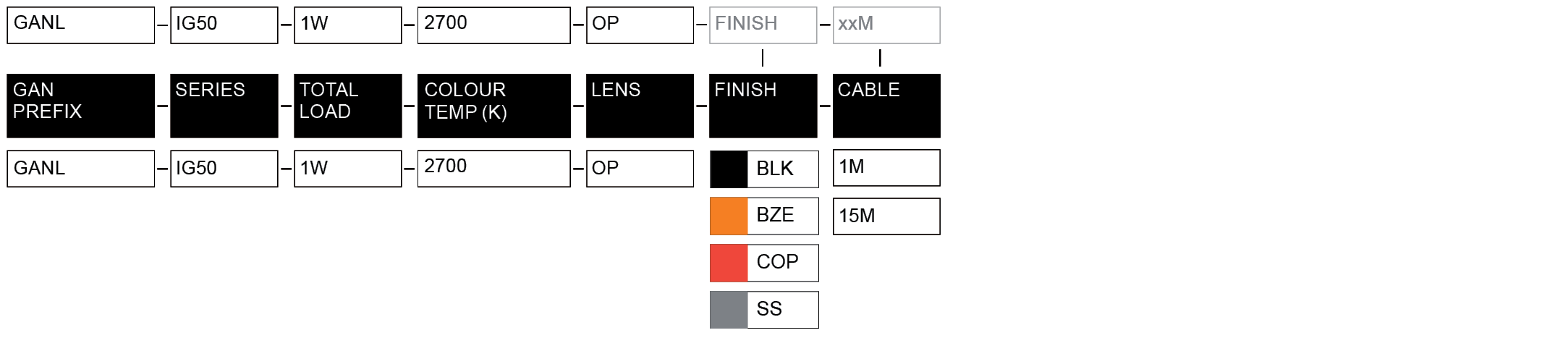

Designed to suit a variety of residential and landscaping applications the Standard range is readily available from your local Distributor. To identify your unique ordering code simply add your chosen finish to the end of the code matrix or copy the standard item code below to order:
GANL-IG50-1W-2700-OP-BZE-1m
Custom configuration - commercial specification

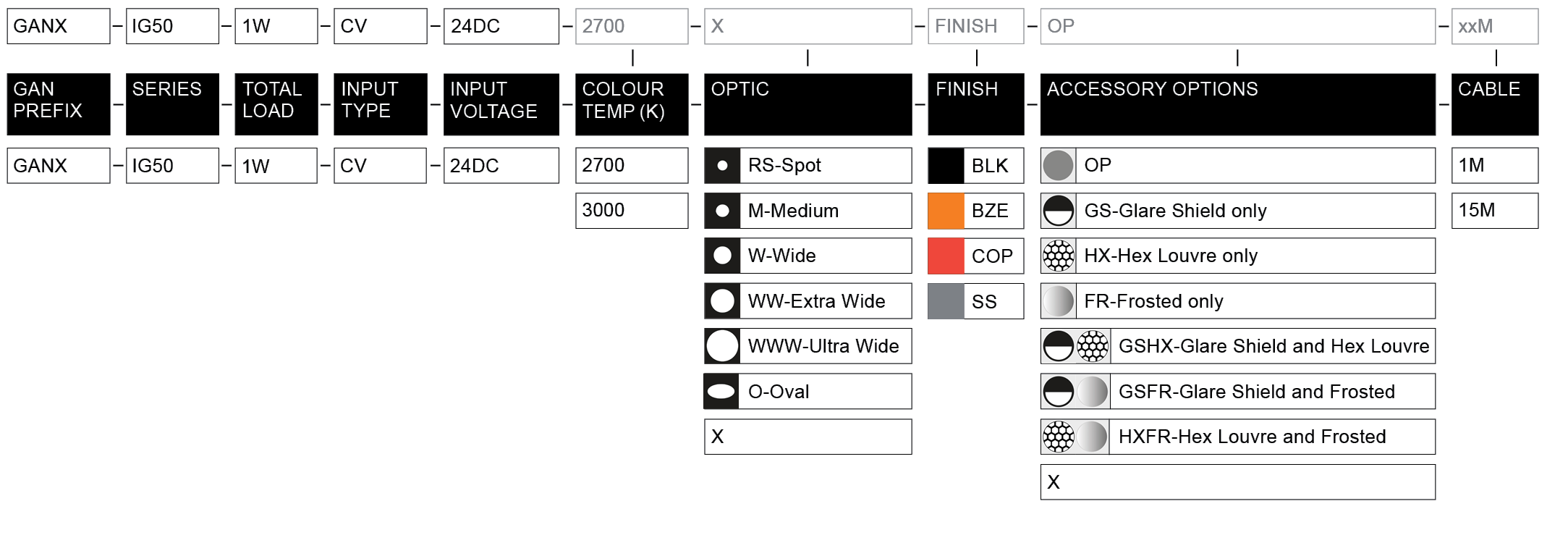

If required, we can provide a Custom solution to suit your large residential or commercial project. The following code matrix shows the options available for customisation. For information, speak to your local Commercial Distributor. To assist with specification, simply refer to the GANX item code below:
GANX-IG50-1W-CV-24VDC-2700-X-40-BZE-OP-1M
The following technical data and resources are available for this product. Click on button to view.
5 years.
Refer to Technical Resources page to download Warranty Statement.
